Capabilities & Production Infrastructure

High-speed stamping presses, progressive die tooling, automated secondary lines, and certified industrial supplies.

Customer Journey

From requirement to reliable mass production

From requirement to reliable mass production without engineering handoffs.

Design & DFM
01

Design & DFM

CAD/CAM tooling design, mold simulation, and DFM optimization.

Tool Fabrication
02

Tool Fabrication

Progressive and compound die machining & assembly.

Stamping
03

Stamping

High-speed progressive runs (1200 SPM) and manual press stamping.

Secondary Process
04

Secondary Process

Multi-tapping, riveting, clinching, assembly, and degreasing.

Inspection & QA
05

Inspection & QA

3-stage IQC-IPQC-OQC inspection, SPC, and PPAP metrology.

Packing & Delivery
06

Packing & Delivery

Clean protection packaging and scheduled global delivery.

Engineering Advantage

Tooling designed for cost, quality and manufacturability

In-house design and fabrication support both ECA production and external metal-stamping customers.

In-house experienced tooling design team

Progressive and compound tool capability

Design for cost - Design for quality - Design for manufacturing

In-house tooling maintenance, modification and fabrication support

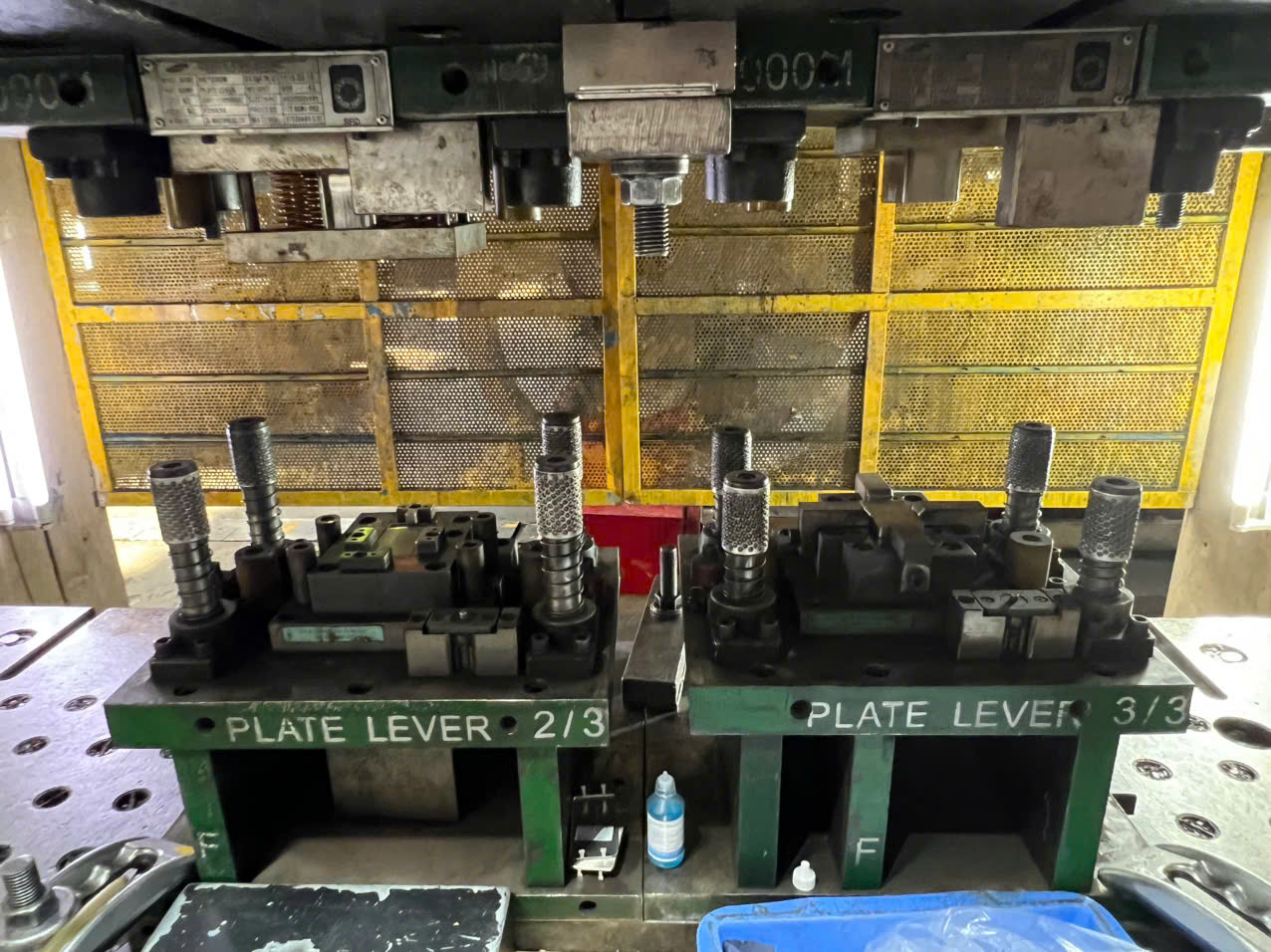

Tooling Real 1

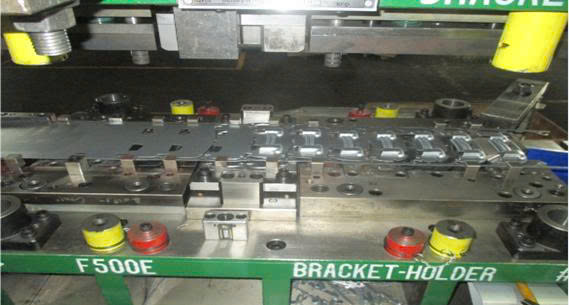

Tooling Real 2

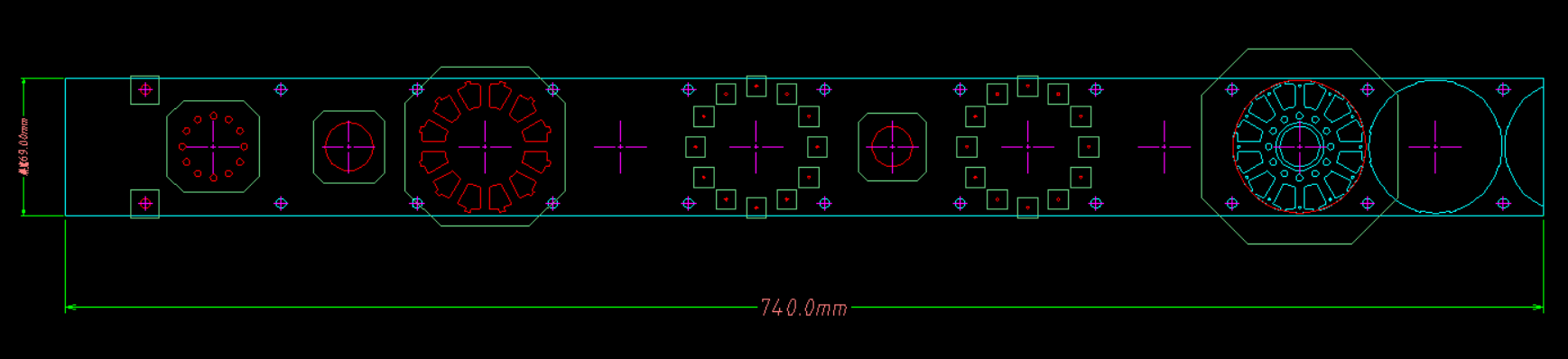

Stator Stack Mold Design
Stator Stack Mold Design

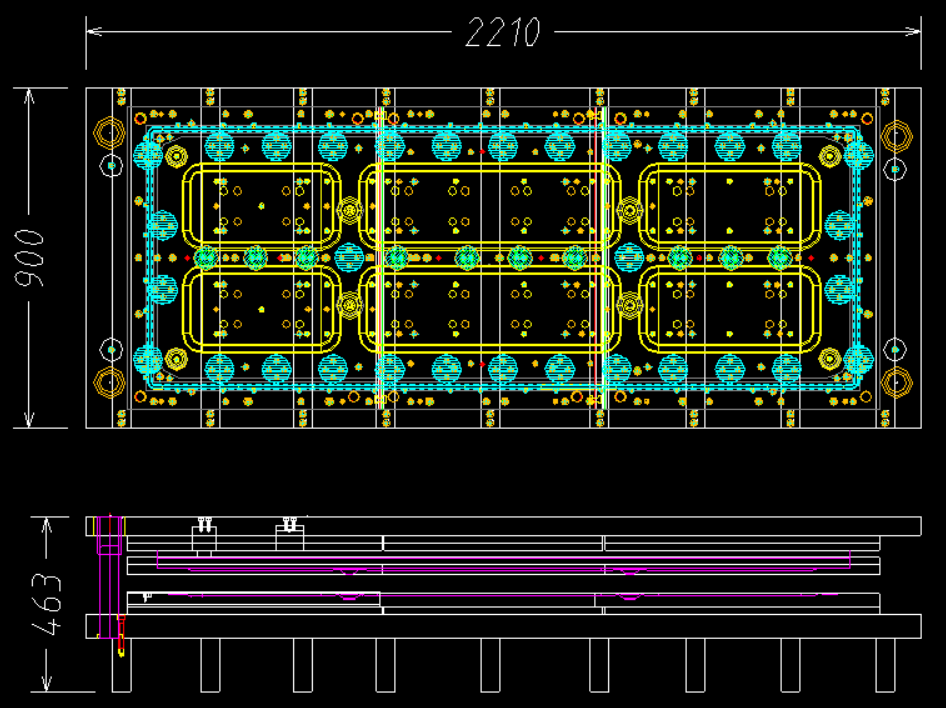

EV Battery Bottom & Intermediate Panel Mold Design
EV Battery Mold Design

Production Envelope & Scope

Precision stamping across a practical, heavy-duty production envelope

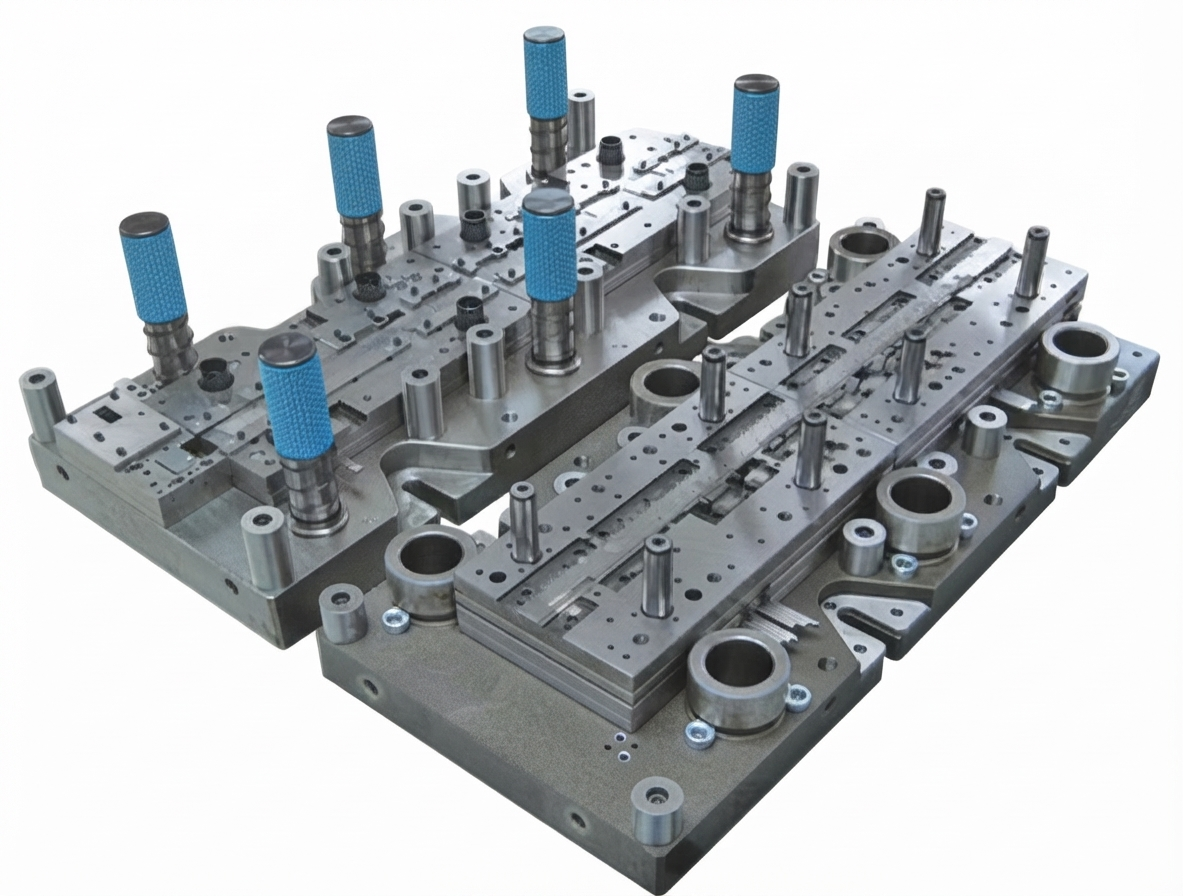

Tooling and Mold Envelope

Tool Size Envelope

Up to 2000 × 750 mm

Part Size Handled

10 × 10 mm to 450 × 1000 mm

Material Thickness

0.15 mm to 4.0 mm

Stamping Press Fleet & Coil Line

Built for high-speed precision runs, heavy stamping loads, and automated continuous feeding

YAMADA DOBBY (VO-30CS)

High-Speed Press
Capacity / Speed30 Tons | 200 ~ 1200 SPM
ManufacturerYamada Dobby Co., Ltd. (Japan)
Slide Stroke20 mm (Die Height: 220 mm)
Slide Area400 × 250 mm
Bolster Area600 × 390 × 145 mm
Motor Required4P × 11 kW

AOTO AUTOMA (AC2-16N3)

Heavy Duty Double Crank
Capacity / Speed160 Tons | 40 ~ 85 SPM
ManufacturerAOTO Engineering Co., Ltd.
Slide Stroke100 mm (Die Height: 300 mm)
Slide Dimensions1600 × 650 mm
Bolster Dimensions2050 × 800 mm
Main Motor15 kW / 4P (Operating Air: 5 kgf/cm²)

AIDA 45 (NC1-45(2))

Stamping Press
Capacity / Speed45 tf | 40 ~ 70 SPM
ManufacturerAIDA Engineering, Ltd.
Stroke Length150 mm (Die Height: 255 mm)
Slide Adjustment60 mm
Main Motor5.5 kW (Supply Air: 4 kgf/cm²)
Safety Response125 ms (Emergency Stopping Time)

SHIMIZU PRESS

Precision Stamping
Capacity / Speed40 Tons | 40 ~ 70 SPM
ManufacturerShimizu Foundry & Iron Works Co., Ltd.
Die Height280 mm
Bolster Dimensions700 × 400 mm
Main Motor1.5 kW
ApplicationProgressive & manual precision component stamping

COIL LINE: METAL DECOILER, STRAIGHTENER & CNC SERVO FEEDER

Width 200mm / 400mm / 500mm
2-in-1 Rack & Straightener (GO-500) Material Width: Up to 500 mm | Thickness: 0.5 – 3.0 mm | Power: 2.2 kW (Huitian Technology)
CNC Servo Feeder (NCF-500) Material Width: Up to 500 mm | Thickness: 0.2 – 3.0 mm | Power: 2.3 kW (380V / 50Hz)

Secondary Operations & Custom Automation

In-house automation reducing external processing and streamlining your supply chain

Automated Multi-Tapping

Dedicated high-speed multi-spindle tapping machines for threaded stamped parts.

Automated Spinning

Fully automated spinning machines for cylindrical shaping and edge forming.

Pick & Place Assembly

Automated multi-station assembly, riveting, caulking, and clinching.

Automated QA Check

Integrated screw-missing and part orientation sensor inspection stations.

Industrial Supplies & Tooling Inserts

Certified metal coils, precision hob cutters, and high-wear punches & pins

Precision Metal Coils

  • Silicon Steel (Motor laminations)
  • Brass & Phosphor Bronze
  • High-Conductivity Copper Alloys
  • Precision Aluminum Strips
  • Cold-Rolled Coils (SPCC)

DTR Hob Cutters

  • DTR Standard Gear Hob Cutters
  • DTR Involute Spline Hob Cutters
  • DTR Parallel Side Spline Cutters
  • DTR Heavy Cutting Hobs

Punches, Pins & Jigs

  • Hard Disk Drive (HDD) Dimple Punches
  • Semiconductor Jig Location Pins
  • Medical Surgery Tube Needle Pins
  • Automotive Precision Pins & Punches
  • Custom Round Punches & Die Inserts
